Brand Name : 1stess
Model Number : TP10KL
Certification : CE, IEC
Place of Origin : China
MOQ : 1 piece
Price : To be negotiated
Payment Terms : L/C, T/T
Supply Ability : 2000 pieces per month
Delivery Time : 30 days
Packaging Details : carton box
Charging Mode : MPPT
Operating Temperature : -10°C To 50°C
Inverter Type : Off Grid inverter
Frequency : 50Hz/60Hz
Output Voltage : 40VDC-60VDC
Communication Interface : RS485/CAN/USB
1.Advanced parallel function
2.Multiple built-in protections
3.Large MPPT current, compatible with high-power solar panels
4.Quick commission via mobile app, 24/7 remote monitoring configuration and upgrade
5.IP66 protection rating, ensuring adaptability to complex outdoor environment
6.Key components from international renowned brands
|
High - efficiency Power Conversion
With a maximum efficiency of 99.9%, European efficiency of 97.5%, and maximum battery - to - load efficiency of 94.5%, it significantly reduces energy loss and improves the energy utilization of power generation and energy storage systems.
Flexible PV Input Adaptation
The MPPT operation voltage range covers 180 - 850VDC, and it supports multiple independent MPPT channels (e.g., TP15KL has 2 MPPT groups, each compatible with 2 PV strings). It can flexibly match the layout and voltage characteristics of different PV arrays to maximize light energy capture.
Wide Energy Storage Battery Compatibility
It supports both lithium - ion and lead - acid batteries, with a battery voltage adaptation range of 40V - 60V; the maximum charge/discharge current can reach 200A/300A (by model). Moreover, the charging strategy for lithium - ion batteries supports self - adaptation to BMS (Battery Management System), compatible with mainstream energy storage battery solutions.
High - Reliability Power Supply Guarantee It integrates
UPS backup function, with a peak apparent power of 11kVA/16.5kVA (by model), and the automatic switch time between mains and backup power is <10ms, ensuring the continuity of load power supply. In grid - connected mode, the rated output power is 10kW/15kW, supporting two - way interaction with the grid (maximum grid - side apparent power 20kVA/30kVA).
Adaptability to Harsh Environments
With an IP66 protection rating, it can resist dust intrusion; the operating temperature range is - 25℃ to +60℃, adapting to severe cold/high - temperature scenarios; the maximum applicable altitude is 4000m (derated operation when altitude >2000m), meeting the deployment requirements in high - altitude areas.
Intelligent & Lightweight Design

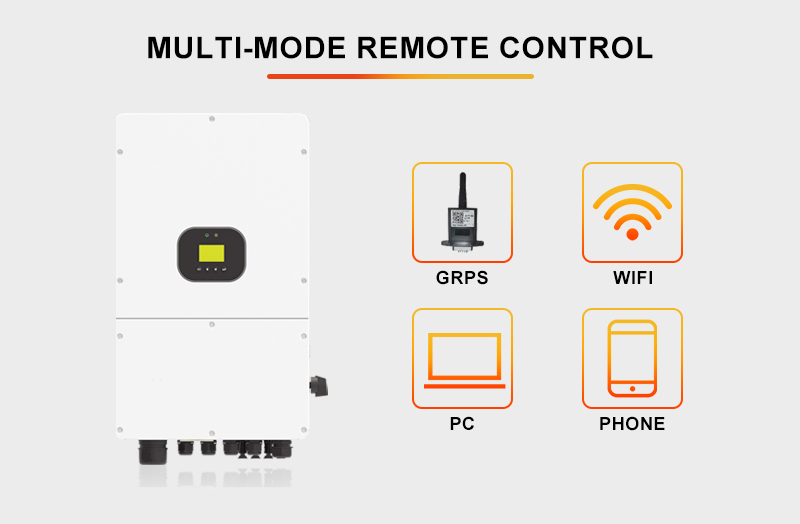

Adopting a transformerless topology, the device is lightweight (44kg) with better efficiency; equipped with a smart cooling system to ensure stable operation; self - consumption at night is <3W, reducing standby energy consumption; it has dual interactions of LCD display + mobile App, and supports multiple communication interfaces (WiFi/4G/USB/CAN/RS485) for easy remote monitoring and operation.
![]() |

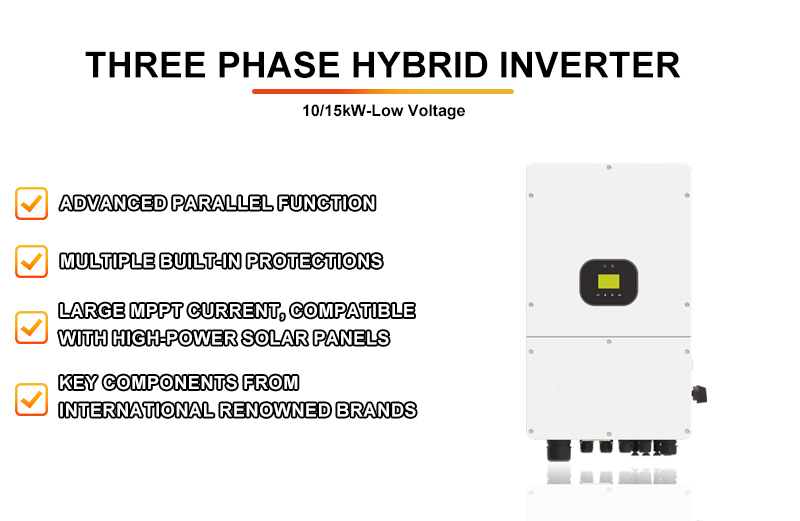

Three Phase 40V-60V 10kw 15kw Hybrid Inverter Dual Output MPPT Pure Sine Wave On/Off Grid Solar Inverter IP66 Hybrid Inverter Images |
